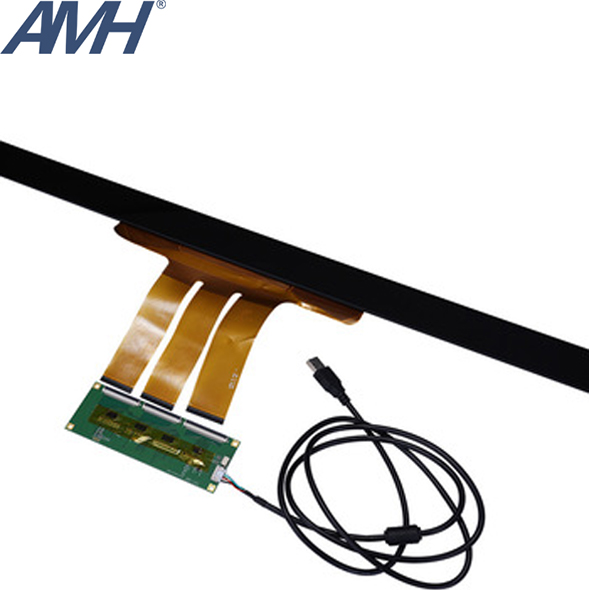

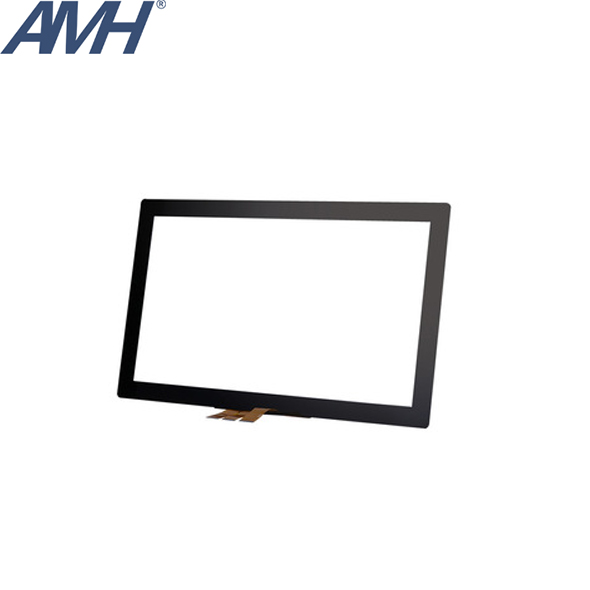

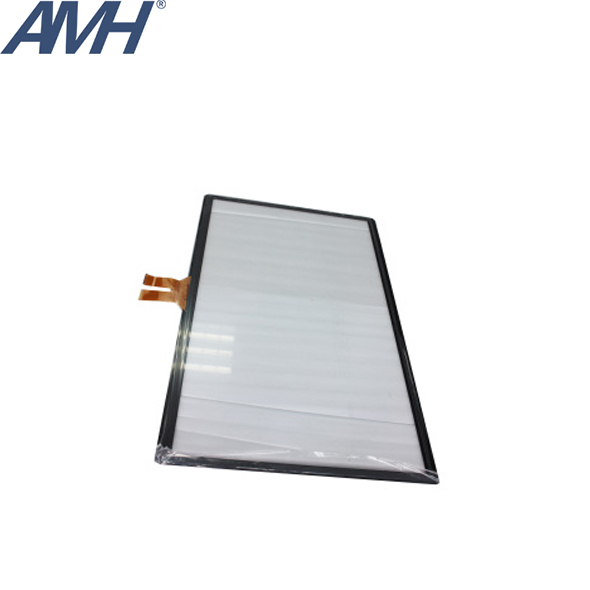

Free driver AMH PCAP capacitive touch screen
Features：
1. Feature: USB Interface, Plug & Play, Free Driver
Tempered Glass 3mm
2. Input Method: Finger , Capacitive Touch Pen
3. Transparency: ≥85%±5%
4. Compatible OS: WindowsXp,7,8,10,Linux,Mac,Android
5. Connection Cable: FPC
6. Active Force: ≤10g
7. Work Voltage: DC 5V(+4.75_+5.25V)
8. Structure: Glass+Glass
Description
Basic parameters
Available size
Size
Model No
Thickness (Glass included)
Aspect ratio
10.1
AMH-D101B
2
16:9
12.1
AMH-D121-10B
2
4:3
15/15.6
AMH-D150/156-10B
2
4：3
17
AMH-D170-10B
2
4：3
18.5
AMH-D185-10B
2
16:9
19
AMH-D190-10B
2
4:3
19.5
AMH-D195-10B
2
16:9
21.5
AMH-D215-10B
2
16:9
23.6
AMH-D236-10B
2
16:9
27
AMH-D270-10B
2
16:9
32
AMH-D320-10B
3
16:9
43
AMH-D430-10B
3
16:9
49
AMH-D490-10B
3
16:9
55
AMH-D550-10B
3
16:9
65
AMH-D650-10B
3
16:9
Operating condition
Working temperature:
-10℃ to 60℃
Storage temperature:
-0℃ to 50℃
Working humidity:
10%-85%
Storage humidity:
5%-90%
