Model No：

Size：

Resolution

Ratio

Touch area (+/- 1mm):

Dimensions of the frame (+/- 1mm):

Thickness (+/- 1mm):

AMH-T15 -T4 C

15 inch

32768*32768

4:3

305mm x 299mm

354x 278mm

7.3mm

AMH-T17-T4C

17 inch

32768*32768

4:3/16:9

340mm x 272mm

376mm x 308mm

7.3mm

AMH-T19-T4C

19 inch

32768*32768

4:3/16:10

377mm x 302mm

414mm x 339mm

7.3mm

AMH-T21.5-T4C

21.5 inch

32768*32768

16:9

477,5mm x 269mm

513,5mm x 305mm

7.3mm

AMH-T32-T10B

32 inch

32768*32768

16:9

700*394mm

746*440mm

9.3mm

AMH-T43-T10B

43 inch

32768*32768

16:9

942*530 mm

988*576 mm

9.3mm

AMH-T49-T10B

49 inch

32768*32768

16:9

1074*604 mm

1120*650 mm

9.3mm

AMH-T50-T50B

50 inch

32768*32768

16:9

AMH-T55-T55B

55 inch

32768*32768

16:9

1210 * 680mm

1257.6x727.6mm

9.3mm

AMH-T60-T60B

60 inch

32768*32768

16:9

AMH-T65-T65B

65 inch

32768*32768

16:9

1429*804mm

1475*850mm

9.3mm

AMH-T70-T10C

70 inch

32768*32768

16:9

1558*880mm

1601.5*925.5mm

MAH-T75-T10C

75 inch

32768*32768

16:9

1653.5*932.7mm

1699*978.2mm

AMH- T86-T10C

86 inch

32768*32768

16:9

1897*1068 mm

1942.5*1113.5mm

Operating condition

Working temperature:

-10℃ to 60℃

Storage temperature:

 -0℃ to 50℃

Working humidity:

10%-85%

Storage humidity:

5%-90%

1. Protection class IP 65

2. Without glass (Size 15'',17'',19'' and 21.5 inch are stocked with glass, and 4 touching points)

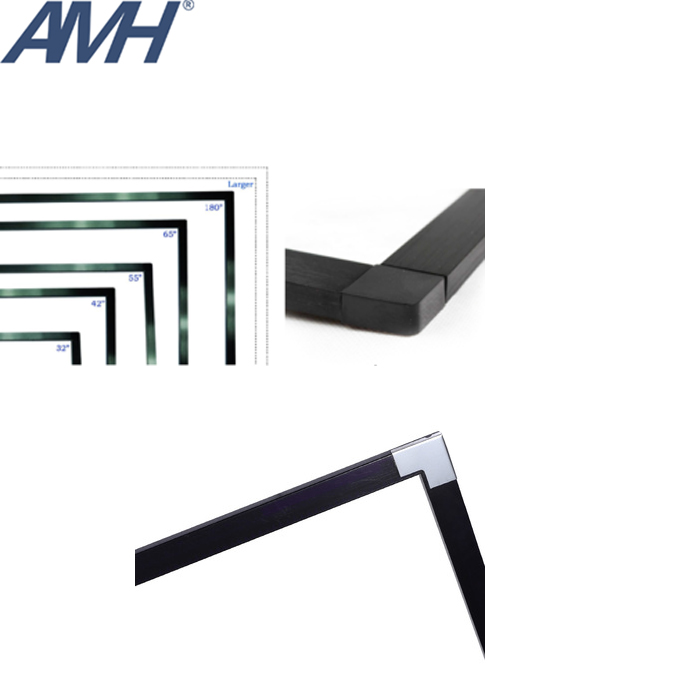

3. Material of frames: Plastic. (70 inch, 75 inch and 86 inch are aluminum alloy made.)

4. Frame thickness not more than 10mm

5. Interface USB connection, plug&play.

6. Operating system support mode multi-touch: Windows 7/8/10 ; Linux; Android

7. Utility (program) for calibration and settings on/off gestures and multi-touch gestures

8.The response time is not more than 7ms

9. Multi-touch not less than 10 touches
