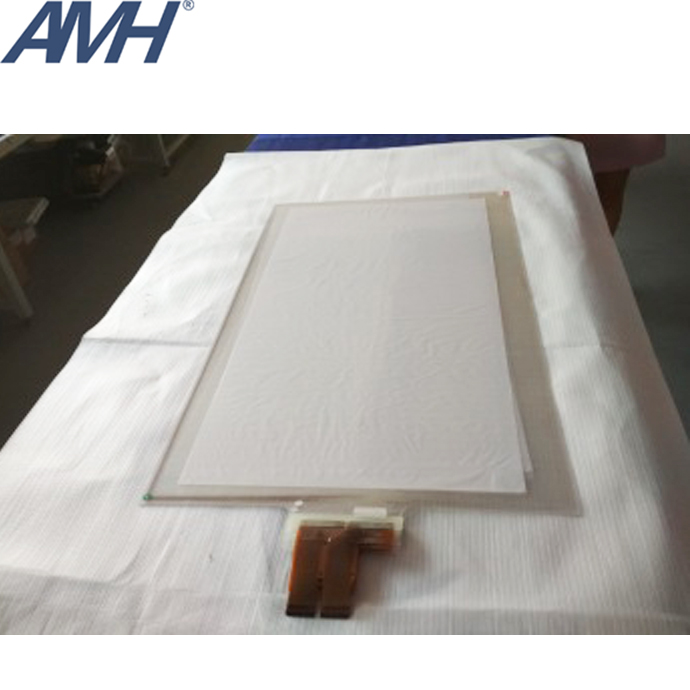

Free driver AMH Nano touch screen
Features：
1. Feature： a. USB Interface, Plug & Play, Free Driver
b.Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc
c.Almost Transparent with Nano Touch Foil
d.High Penetration to Capture finger touch/gesture over the medium.
e.Large sizes available up to 167inch
2. Input Method: Finger
3. Compatible OS WindowsXp,7,8,10,Linux,Mac,Android

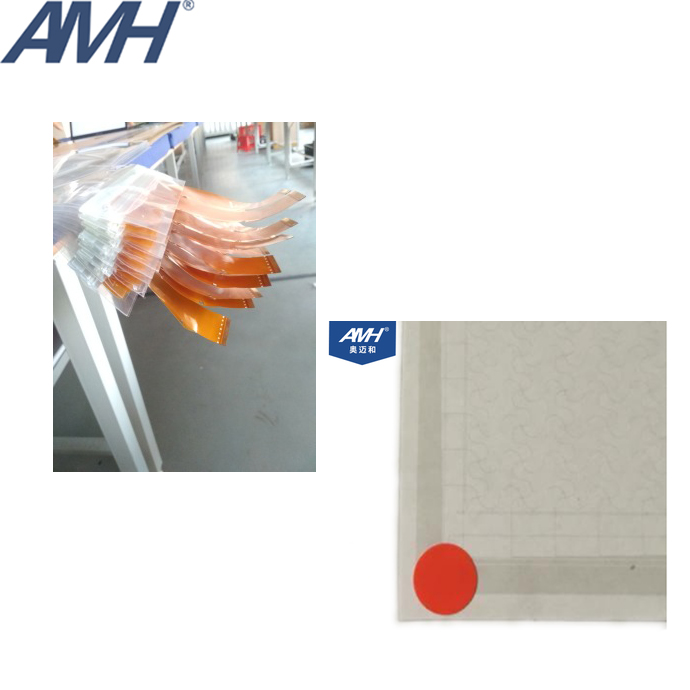

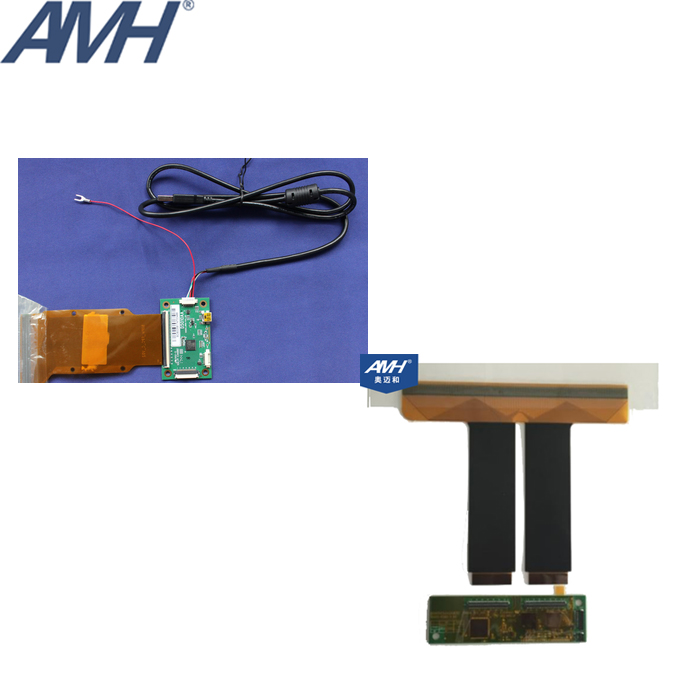

4. Connection Cable: FPC
5. Active Force: ≤10g
6. Structure: F+F
7. Work Voltage: DC 5V(+4.75_+5.25V)
Description
Basic parameters
Available size
|
Size |
Model No |
Aspect ratio |
|
|
|
23.6/24 |
AMH-E240-80B/S |
16：9 |
||
|
25 |
AMH-E250-80B/S |
16:9 |
||
|
27 |
AMH-E270-110B/S |
16：9 |
||
|
32 |
AMH-E320-110B/S |
16:9 |
||
|
37 |
AMH-E370-110B/S |
16：9 |
||
|
40 |
AMH-E400-110B/S |
16：9 |
||
|
42/43 |
AMH-E420-110B/S |
16：9 |
||
|
46/47 |
AMH-E460/470-110B/S |
16：9 |
||
|
49/50 |
AMH-E490-110B/S |
16:9 |
||
|
52 |
AMH-E520-110B/S |
16：9 |
||
|
55 |
AMH-E550-110B/S |
16:9 |
||
|
58 |
AMH-E580-160B/S |
16：9 |
||
|
60 |
AMH-E600-160B/S |
16：9 |
||
|
65 |
AMH-E650-160B/S |
16:9 |
||
|
70 |
AMH-E700-160B/S |
16:9 |
||
|
75 |
AMH-E750-160B/S |
16:9 |
||
|
80/82 |
AMH-E800/820-160B/S |
16:9 |
||
|
84/86 |
AMH-E840/860-160B/S |
16:9 |
||
|
98 |
AMH-E980-220B/S |
16:9 |
||
|
110 |
AMH-E100-220B/S |
16:9 |
|
Operating condition |
Working temperature: |
-10℃ to 60℃ |
|
Storage temperature: |
-0℃ to 50℃ |
|
|
Working humidity: |
10%-85% |
|
|
Storage humidity: |
5%-90% |
|
Nano touch |
points touch |
10-Points nano touch screen |
|
Series |
MT-24K |
|
|
Technical aisle |
110 aisle, 160 aisle, 220 aisle |
|
|
Sensor Number |
24576/no analog switches |
|
|
Film thickness |
Almost 100um |
|
|
Ambient light |
The whole point of the anti-glare |
|
|
Touch support |
Click, drag, zoom, rotate |
|
|
Drive type |
Free driver |
|
|
Support Customization |
Irregular size |
|
|
Function |
Technical rationale |
Nano-silver wire mesh matrix substitute ITO layer |
|
Touch deviation |
1mm |
|
|
Scan speed |
25 ms / frame |
|
|
Light transmittance |
95% |
|
|
Supply voltage |
5V USB |
|
|
Transmission mode |
USB2.0 |
|
|
Transmission distance |
Almost 5m Plus USB signal amplifier |
|
|
Safe distance |
2-3mm/the distance between the LCD screen and the film |
|
|
Ambient temperature |
-20 ℃ to + 70 ℃ |
|
|
Humidity |
0-95% |
|
|
Humidity |
0-95% |
|
|
Sensing distance |
≤20mm |
|
|
Calibration: |
Software calibration /calibration support regional five-point calibration |
|
|
Remark |
Driver Compatibility |
Windows XP, Windows 7/8/10 (32 Bit / 64 Bit),Linux, Android, Mac |
|
Available Adhesive to any medium, like Transparent Glass, LCD/LED Display Unit, etc; |
||
|
Almost Transparent with Nano Touch Film; |
||
|
High Penetration to Capture finger touch/gesture over the medium (Glass or other materials); |
||
|
large sizes available up to 167inch |
||
