Wall Mounted Advertising Player
Home-Products-Wall Mounted Advertising Player
<
>

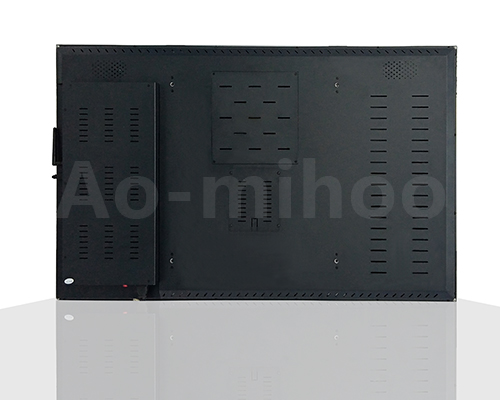

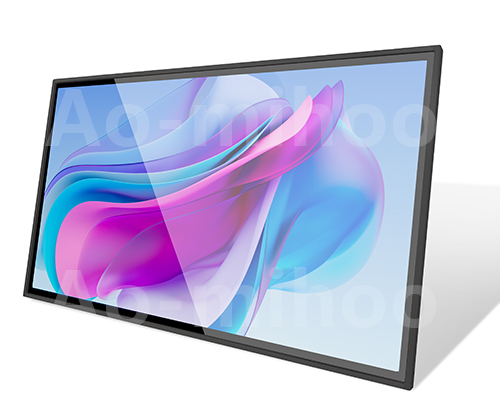

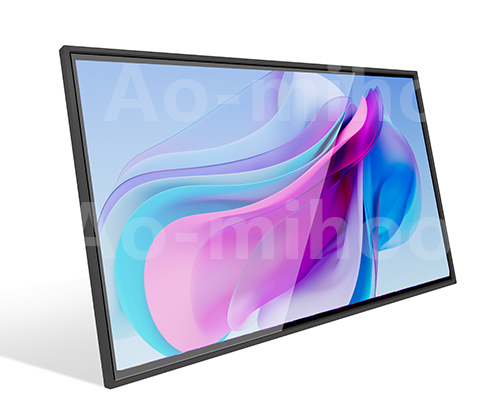

Wall mounted AIO built in IR touch screen-black
Features：
1.Size:43 inch~65 inch3.Application: Indoor
4.Interface:USB,HDMI,WIFI,BLUETOOTH,RJ45,TF,etc.
5.Brightness: 500 nit
6. Resolution: 2K or 4K
Description
| 1 .Basic specifications | ||
| Resolution | 1920×1080 or 3840×2160 | |
| Color | Standard color | 16.7M |
| Maximum color | Full Color | |
| LCD panel-screen | Type | LED |
| Response time | 8ms | |
| Brightness | 350cd/m², 500cd/m² or 700cd/m² | |
| Contrast | 1200:01:00 | |
| Viewing angle | 178° | |
| Color | 16.7M | |
| Aspect Ratio | 16:09 | |
| Power | AC100～240V,50/60Hz | |
| Maximum current | ≤1.5A | |
| Working environment | Temperature | -10℃～50℃ |
| Relative humidity | 10％～90％ | |
| Altitude | ≤5000 M | |
| Storage environment | Temperature | -20℃～60℃ |
| Relative humidity | 10％～90％ | |
| Service life | ≥30000 Hrs | |
| Installation method | Wall mount | |
| Operation method | Smart touch | |
| Case material | Profile+metal | |
| 1.2 Touch function technical parameters | ||
| Touch indicator | Touch form | Infrared ten-point touch technology |
| resolution | 32768(W) × 32768(D) | |
| Touch method | Finger or pen | |
| positioning accuracy | 2mm | |
| Touch accuracy | <1.5mm（Central region），<2.5mm（Marginal area） | |
| Glass | Yes | |
| Minimum diameter of touch object | ≥ 5mm | |
| Number of touches | Unlimited | |
| Interface | USB2.0 full speed | |
| 1.3 Options of Windows system configuration | ||
| CPU | INTER I3/ (I5/I7optional) | |
| Configuration of PC （Optional） | Ram | Kingston/4GB/8GB/DDR3/1600MHZ |
| hard disk | SSD128G/256GB/ (optional HDD500GB/1GB) | |
| Types of Hard disk | Solid state drive (optional mechanical hard drive) | |
| Operating system | Windows 7/10 trial version (professional system is optional) | |
| 1.4 Options of Windows system configuration | ||
| Android parameters：RK3288 | ||
| CPU | RK3288 Cortex-A17 Quad core, 2.0 GHZ | |
| ARM Mali-T764 GPU | ||
| RAM | 2G（optional 4G） | |
| Storage | NAND FLASH/EMMC 8GB（optional 16G） | |
| System | Android 5.1/7.1 | |
| Decoding resolution | Support highest 1080P | |
| Network support | Ethernet, WiFi, 3G/4G (optional) | |
| Video support | Support AVI (H.264, DIVX, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (.H.264, MPEG, DIVX, XVID), DAT (VCD format), VOB (DVD format), PMP, MPEG, .MPG, FLV (H.263, H.264), ASF, TS, TP, 3GP, MPG and more than 30 formats | |
| Image Format | Support BMP, JPEG, PNG, GIF | |
| USB2.0 interface | 2 USB HOST standard interfaces, 2 USB expansion interfaces | |
| RTC Real Time Clock | Support | |
| Timer switch | Support multiple modes of timing switch | |
| System Upgrade | Support USB upgrade, SD card upgrade, remote upgrade | |
| Support information publish system | LAN/Cloud platform (optional) | |
| Android parameters：RK3399 | ||
| CPU | RK3399 eight-core, main frequency 2.0 GHz | |
| Dual-core Cortex-A72 up to 2.0GHz | ||
| Quad-core Cortex-A53 up to 1.5GH | ||
| Mali-T864 GPU | ||
| RAM | 2G（optional 4G） | |
| Storage | NAND FLASH/EMMC 16GB( optional 32G） | |
| System | Android 7.1/8.0 | |
| Decoding resolution | Support highest 1080P | |
| Network support | Ethernet, WiFi, 3G/4G (optional) | |
| Video support | Support AVI (H.264, DIVX, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, DIVX, XVID), WMV, MOV, MP4 (.H.264, MPEG, DIVX, XVID), DAT (VCD format), VOB (DVD format), PMP, MPEG, .MPG, FLV (H.263, H.264), ASF, TS, TP, 3GP, MPG and more than 30 formats | |
| Image Format | Support BMP、JPEG、PNG、GIF | |
| USB2.0 interface | 2 USB HOST standard interfaces, 2 USB expansion interfaces | |
| RTC Real Time Clock | Support | |
| Timer switch | Support multiple modes of timing switch | |
| System Upgrade | Support USB upgrade, SD card upgrade, remote upgrade | |
| Support information publish system | LAN/Cloud platform (optional) | |
