Whiteboard interactive touch panel
Features：
●Intelligent teaching, say goodbye to chalk dust.
●Interactive teaching, interactive meetings.
●4K Super Clear Screen, Image Quality Upgrade.
●Multiple interface to more functions connections.
Description
|
Interactive Flat Panel Solution |
|
|
|
For conference and education |
|
Optimize communication and collaboration
with a cost effective solution |
|
With Ultra HD picture quality and large screen, attracts the audience's attention in any environment, such as a meeting room or classroom. |
|
Main Features |
|
3840 x 2160p 4K Media Player Whiteboard writing Screen mirroring Video conference |
|
|||
|
Detail Features |
|||
|
Supports 10 Points Touch and Writing |
|
Provides Natural Writing Experience |
|
UHD Display Enables Immersive Learning |
|
Anti-glare Glass makes for a comfortable View |
|
Optional PC Module |
|
Optional Wifi Module |
|
Instant Whiteboard Software for Interactive |
|
Annotation Tools at All Channels Multiple Tools for Effective Classes Easy Export with Cloud Storage |
|
File manager file classification, easy to find and use |
|
Optional built-in Camera and Microphone for video conference |
|
Massive welcome template Easy to use at any time, any occasion |
|
SCREEN mirror that supports Windows, Mac, iOS, Android and Chrome Devices |
|

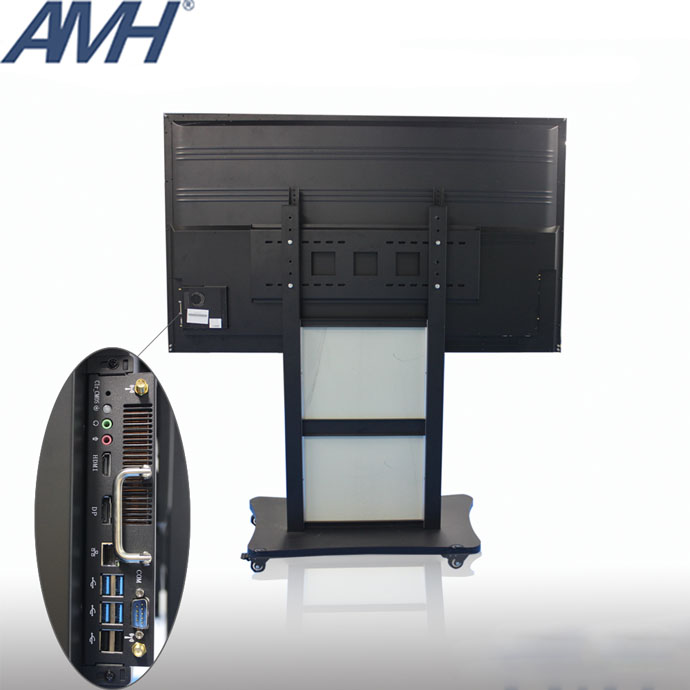

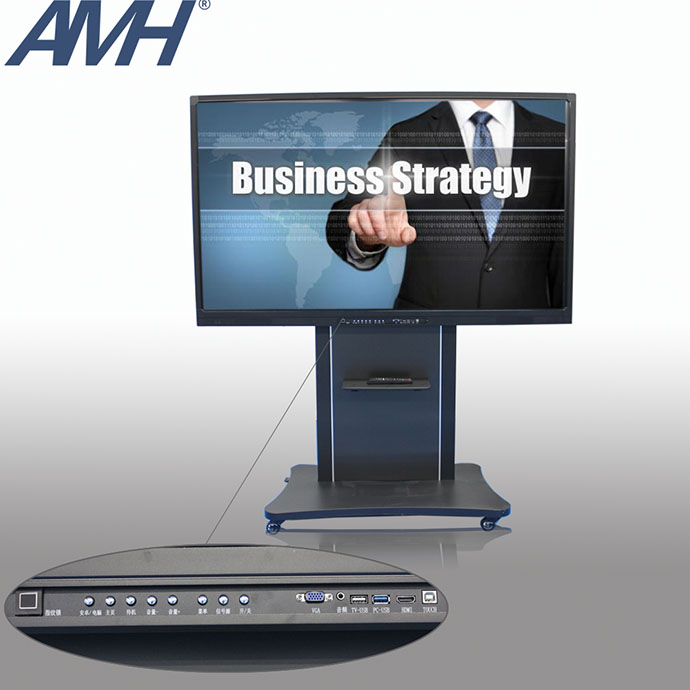

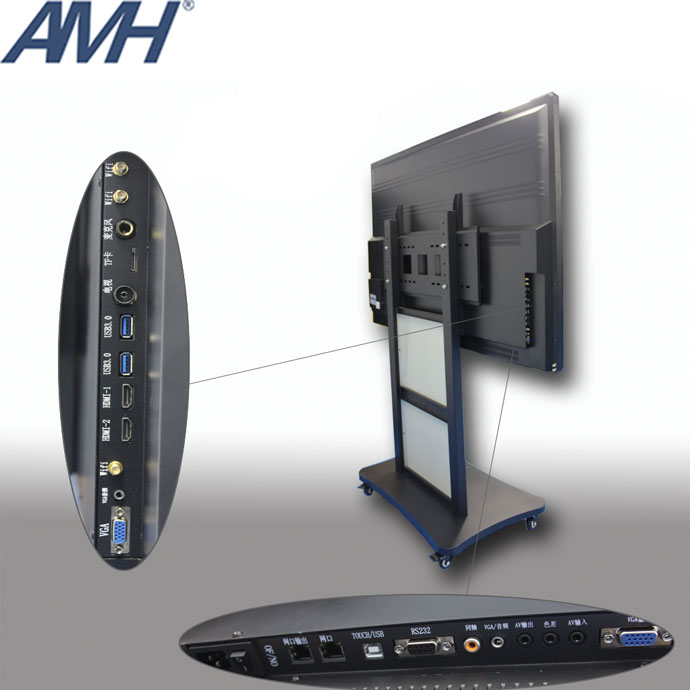

Product Picture |
|||
|
Size available 55” 65” 75” 85”
|
|
||
|
|
Optional floor standing stand |
||
|
Six sided diagram |
|||
|
|
|||
|
Product Specifications |
|||
| Screen | Size | 55" | 65" | 75" | 85" |
| Backlight type | D-LED | D-LED | D-LED | D-LED | |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 300cd/m² | 350cd/m² | 350cd/m² | 350cd/m² | |
| Contrast ratio | 5000:01:00 | 4000:01:00 | 6000:01:00 | 4000:01:00 | |
| Response time | 6.5ms | 6ms | 6ms | 6ms | |
| Dot pitch(mm) | 0.105x 0.315( | 0.124×0.372 | 0.4298 x 0.4298 | 0.4875 x 0.4875 | |
| Refresh rate | 60 HZ | 60 Hz | 60 Hz | 60 Hz | |
| View Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) | |
| Display area(mm) | 1209.6x680.4 | 1428.48x803.52 | 1650.24×928.26 | 1872×1053 | |
| Colors | 1.07G 8bit+FRC | ||||
| Screen life | 30,000 hrs | ||||
| Main board | Chip set | MSD8386 | |||
| System | OS | Android 8.0 | |||
| CPU architecture | CA53*2+CA73*2 | ||||
| CPU work frequency | 1.5 GHz | ||||
| CPU core | Quad-core | ||||
| GPU | G51MP2 | ||||
| RAM | 3 GB DDR4 | ||||
| ROM | 32 GB Standard | ||||
| Power supply | Power | 100 V ~ 240 V/AC, 50/60 Hz 1.1A | |||
| Standby consumption | ≦0.5W | ||||
| OPS Power | 19V(DC)/5A | ||||
| Function | Speaker power | 8Ω/10W*2 | |||
| Power switch | *1 | ||||
| TV System | TV | ATV (PAL,SECAM) | |||
| DTV (DTMB) | |||||
| Video decoding | Image motion noise reduction, motion adaptive | ||||
| Channel storage | 200 | ||||
| Stereo surround sound | Yes | ||||
| Interface |
LAN *2, VGA IN *1, PC-AUDIO IN *1, YPBPR *1, AV IN *1, AV OUT *1, Earphone OUT *1, RF-IN *1, SPDIF *1, HDMI input *3, Touch *1, Type-c *1, RS-232 *1, USB2.0 *5, HDMI OUT *1 |
||||
| Environment | Recoended max usage time | 18 Hours*7 days | |||
Ops computer is opitonal with CPU Intel 3, Intel 5,Intel 7.
