Floor Standing Double-Side Monitor
<
>
  • Floor Standing Double-Side Monitor
  • Floor Standing Double-Side Monitor
  • Floor Standing Double-Side Monitor
  • Floor Standing Double-Side Monitor

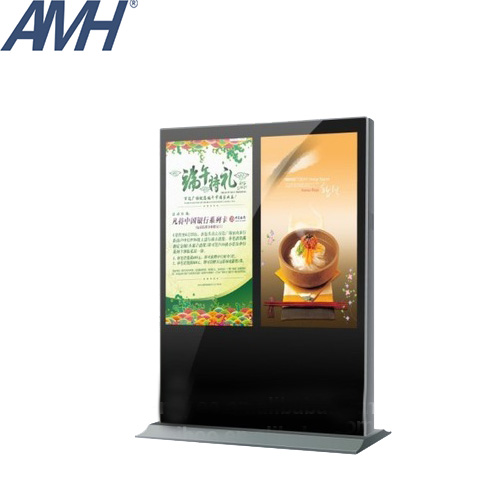

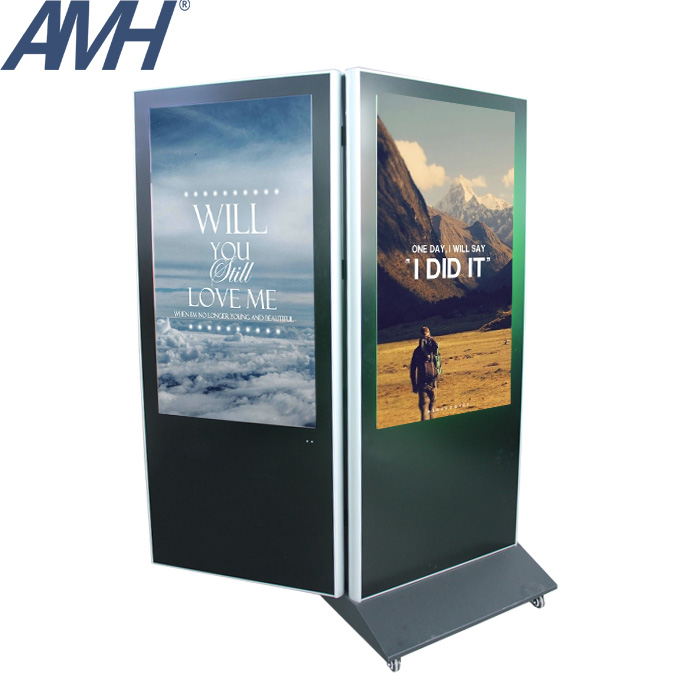

Floor Standing Double-Side Monitor

Features:

Full HD screen!

Support double screen output display!

Intelligent program scheduling system!

Any split screen display!

More features meet your choice!



Description

LCD Screen: Samsung,LG,AUO,Chimei Full New Grade TFT LCD screen ,LED Backlight

Resolution:1920*1080

Brightness : 360cd/m2,700cd/m2

Material : Metal Case;Aluminum Alloy Profile+Metal Case

Tempered Glass:3mm,4mm,5mm

Speakers2*5w(5w to 55’’&above)Amplified Speakers

Touch Screen : (10,16,32 is optional) , Nano Touch Screen

Video InterfaceVGA,DVI,HDMI

Audio:3.5mm Audio Jack

Compatible OS:Windows 7,8,10,Android

Optional functionHD Web Camera;Blue Tooth4G Network



Application Area: Hotel&Inn,Commercial Building&Office,Exhibition&Fair,Recreation&Relax,Traffic Center&Train Station,Airport,Bus&Taxi,Shopping Mall&Stores.



Available Size:43/49/55/65inch

Size

Resolution

Brightness

cd/m2

Contrast

Active area(mm)

Viewing angle

Proportion

43

1920*1080

360

2000:1

941*530

178

16:9

49

1920*1080

360

2000:1

1074*604

178

16:9

55

1920*1080

360

3000:1

1214*680

178

16:9

65

1920*1080

360

4000:1

1435*808

178

16:9



Available Touch Screen :

Nano Touch Screen (Free Driver)

Feature1.USB Interface, Plug & Play, Free Driver

2.Available Adhesive to any medium,like Transparent Glass,

LCD/LED Display Unit, etc

3.Almost Transparent with Nano Touch Foil

4.High Penetration to Capture finger touch/gesture over the medium.

5.Large sizes available up to 167inch

Input MethodFinger

Compatible OSWindowsXp,7,8,10,Linux,Mac,Android

Connection CableFPC

Active Force:≤10g

StructureF+F

Thickness:≤100um



Available Android / Windows System:

Android System

Computer System

RK3188/A83T/RK3288/RK3399

System: Android 4.4/5.1/6.0/7.1 (optional)

Storage: 8G/16G/32G/64G (optional)

Memory: DDR3 2G/4G

Storage extension: Up to 32GB SD card/TFC card expansion, SATA driver extension is also supported

WIFI:802.11b/g/n

 Interface: USB * 2/DC12V/HDMI/RJ54

Integrated CPU Intel: I3/I5/I7

Memory: DDRIII/4/8/16GB

Network card: RTL8100E

Wifi:802.11 B/G/N

Hard disk: HDD:500GB/1TB

SSD:120/128/240/256/512GB

Integration: Intel HD Graphics 4400

Speaker: 2 built-in high-quality stereo speakers (3w or 5w)

Interface: USB * 4/VGA/HDMI/LAN

Discrete CPU Intel :I3/I5/I7

Motherboard: H81/H110

Memory: DDRIII/4/8/16GB

Network card: RTL8100E

Wifi:802.11 B/G/N

Hard disk: HDD:500GB/1TB

SSD:120/128/240/256/512GB

Integration: Intel HD Graphics 4400

Discrete graphics card: 2G/4G/6G (optional)

Speaker: 2 built-in high-quality stereo speakers (3w or 5w)

Interface: USB * 4/VGA/HDMI/LAN
